Solution Design for Retail besiness in C4 Model

Overview

Retail is the sale of goods and services to consumers. A retailer purchases goods in large quantities from manufacturers, directly or through a wholesaler, and then sells them in smaller quantities to consumers for a profit. Retail involves multiple channels, including both bricks and mortar and online retailing.

Key Features

Shipping Tools
Point of Sales
Product Management
Inventory Management
Order management
Reporting and Analytics
Payment Processing
Accounting software
Marketing
Online store builder

Roles

Frontoffice:

Store Manager
Sales Associate
Cashier

Backoffice:

Operations Manager
Customer Service Representative
Logistics and Supply Chain Coordinator
Marketing Specialist

Solutions

Solution Design for Retail besiness in C4 Model

Overview

Key Features

Roles

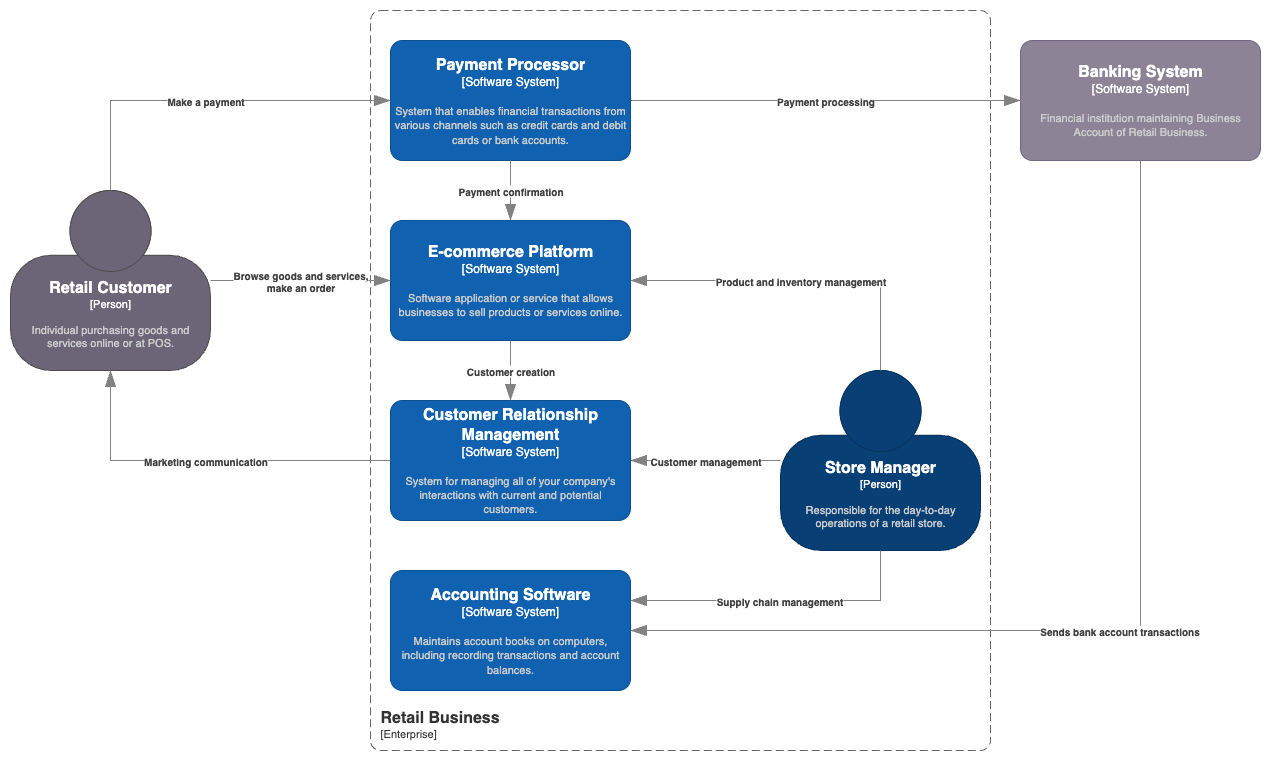

System Lanscape Diagram

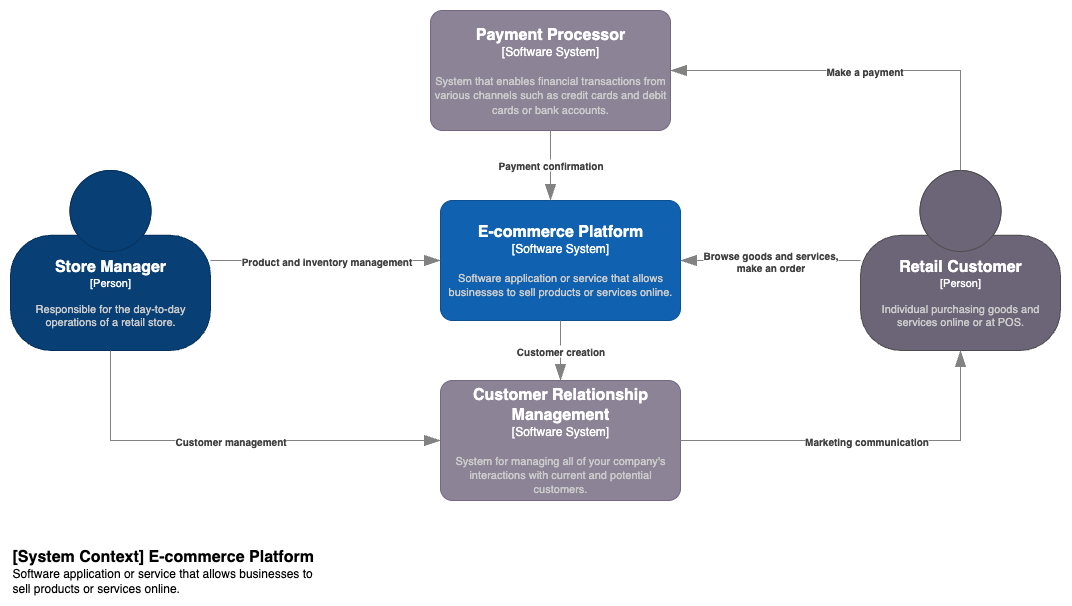

System Contex Diagram

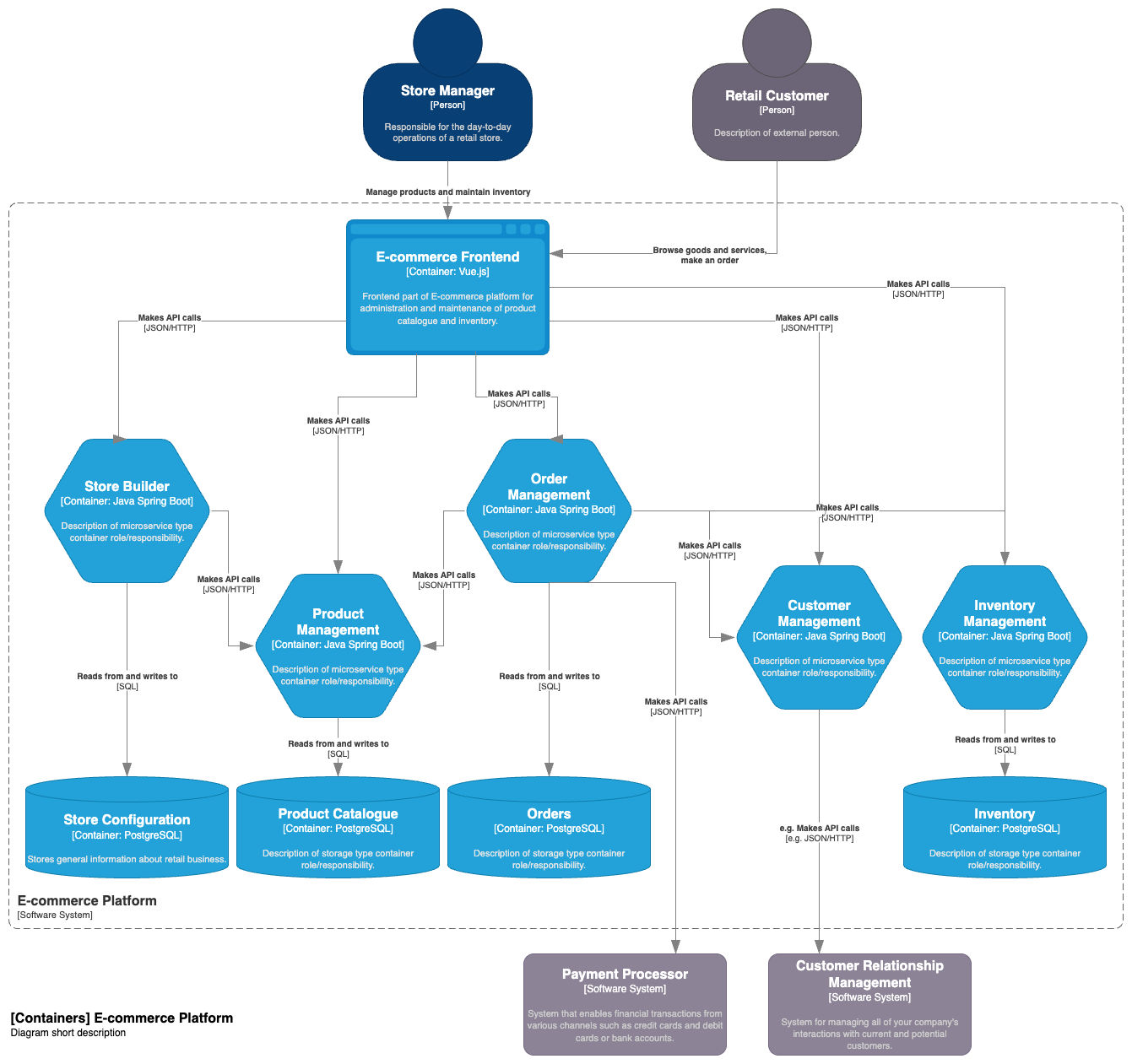

Container Diagram
